Subway safety monitoring system

1、System Introduction

The particularity, periodicity, and long-term nature of deformation monitoring in subway tunnel structures result in a huge amount of information. Information management is an important task in monitoring the deformation of subway tunnel structures. In order to efficiently and accurately manage monitoring information and timely analyze and forecast the stability of subway tunnel structures, Suzhou Ronglin has customized an information management system with functions such as deformation monitoring data storage, preprocessing, management analysis, visualization analysis, and limit warning, ensuring accurate, timely, and fast data processing and information feedback. Deformation monitoring of the structure must be carried out during both the construction and operation periods to ensure the safety of the main structure and surrounding environment.

2、Monitoring content

(1) Settlement displacement monitoring

(2) Convergence displacement monitoring

(3) Surface stress monitoring

(4) Pipe displacement monitoring

(5) Crack displacement monitoring

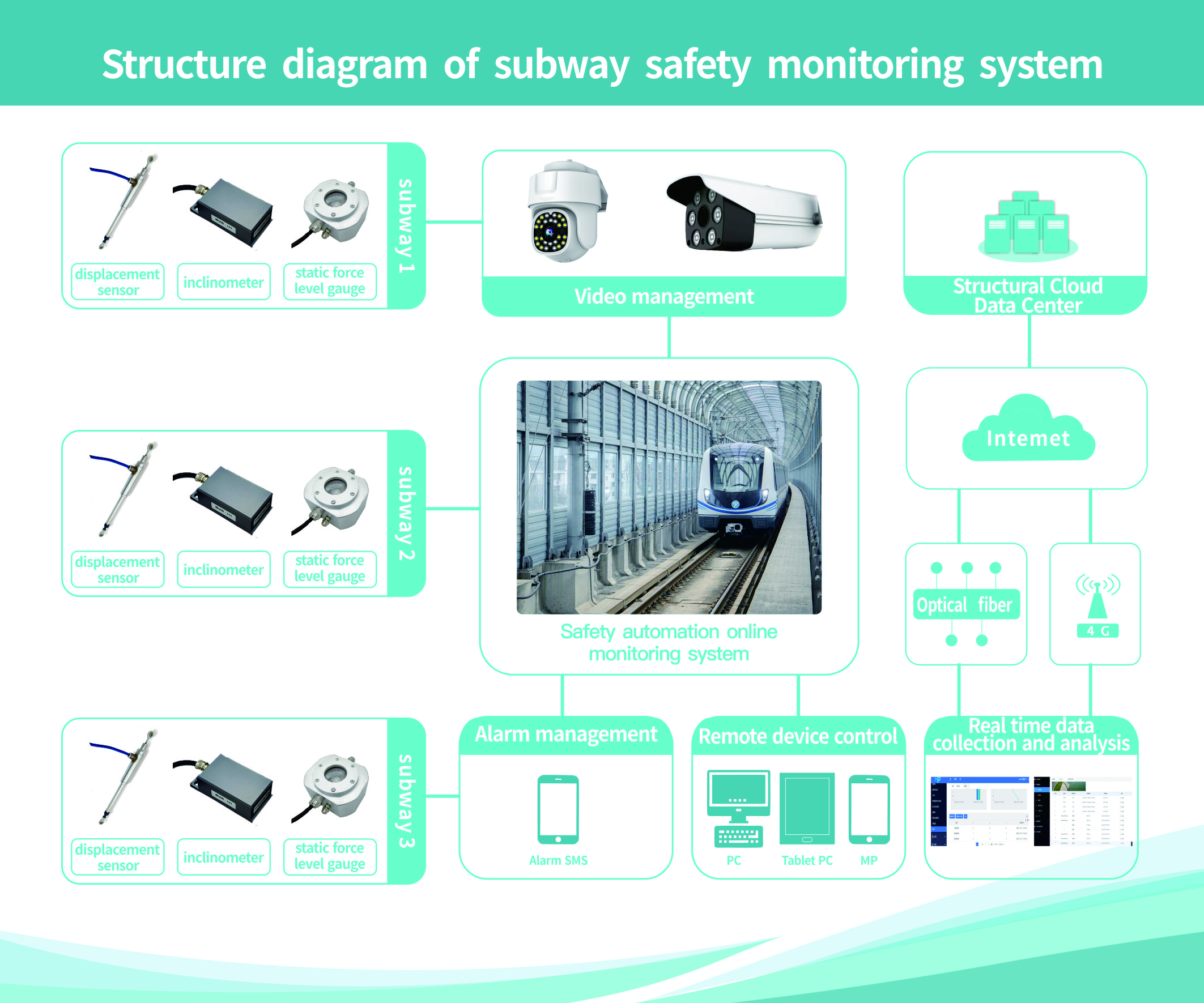

3、System topology diagram

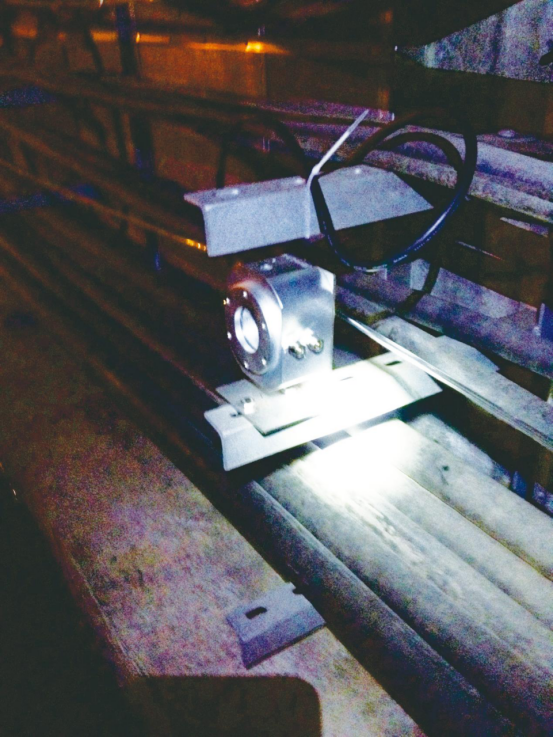

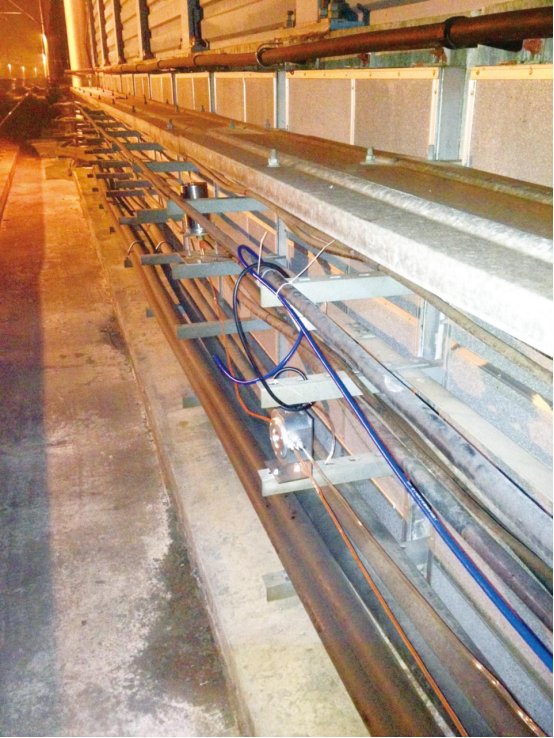

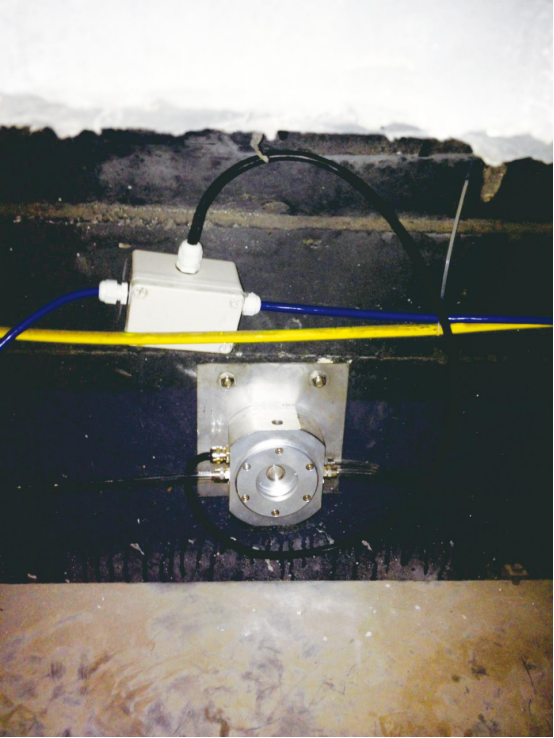

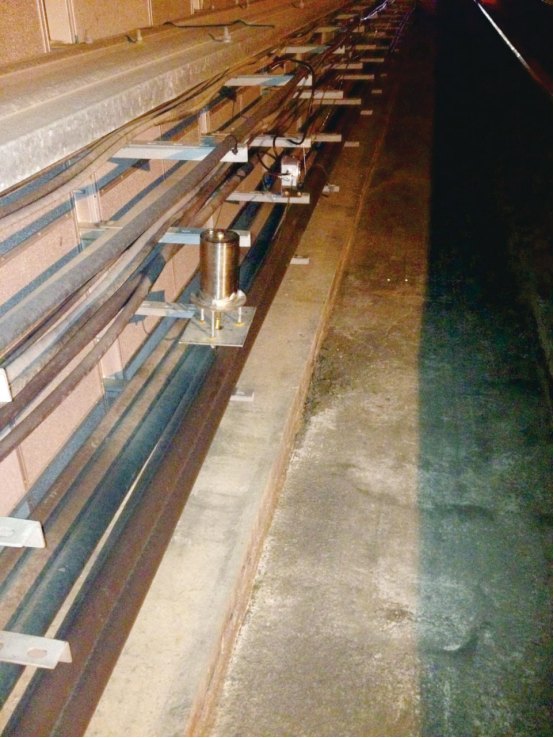

4、Application case diagram
