Drilling platform safety monitoring system

1、System Introduction

Under the combined action of external loads such as typhoons, waves, and construction operations on the upper part of the platform, the pipeline frame may suffer structural damage, destruction, failure, and even platform overturning, resulting in economic losses, personnel injuries, and adverse social impacts. Therefore, it is necessary to monitor the structure of fixed offshore facilities, mainly to provide an effective process and framework for damage assessment, dynamic response, maintenance planning, etc. through monitoring and analysis of platform modification, load action, damage, extreme weather, extended service, and emergency response during the entire life cycle of offshore structures from construction and installation to retirement and dismantling.

2、Monitoring content

(1) Three dimensional displacement monitoring

(2)Settlement displacement monitoring

(3) Surface stress-strain monitoring

(4) Video surveillance analysis

(5) Internal water level monitoring

(6)Vibration monitoring

(7)Monitoring of Wave Wind Speed

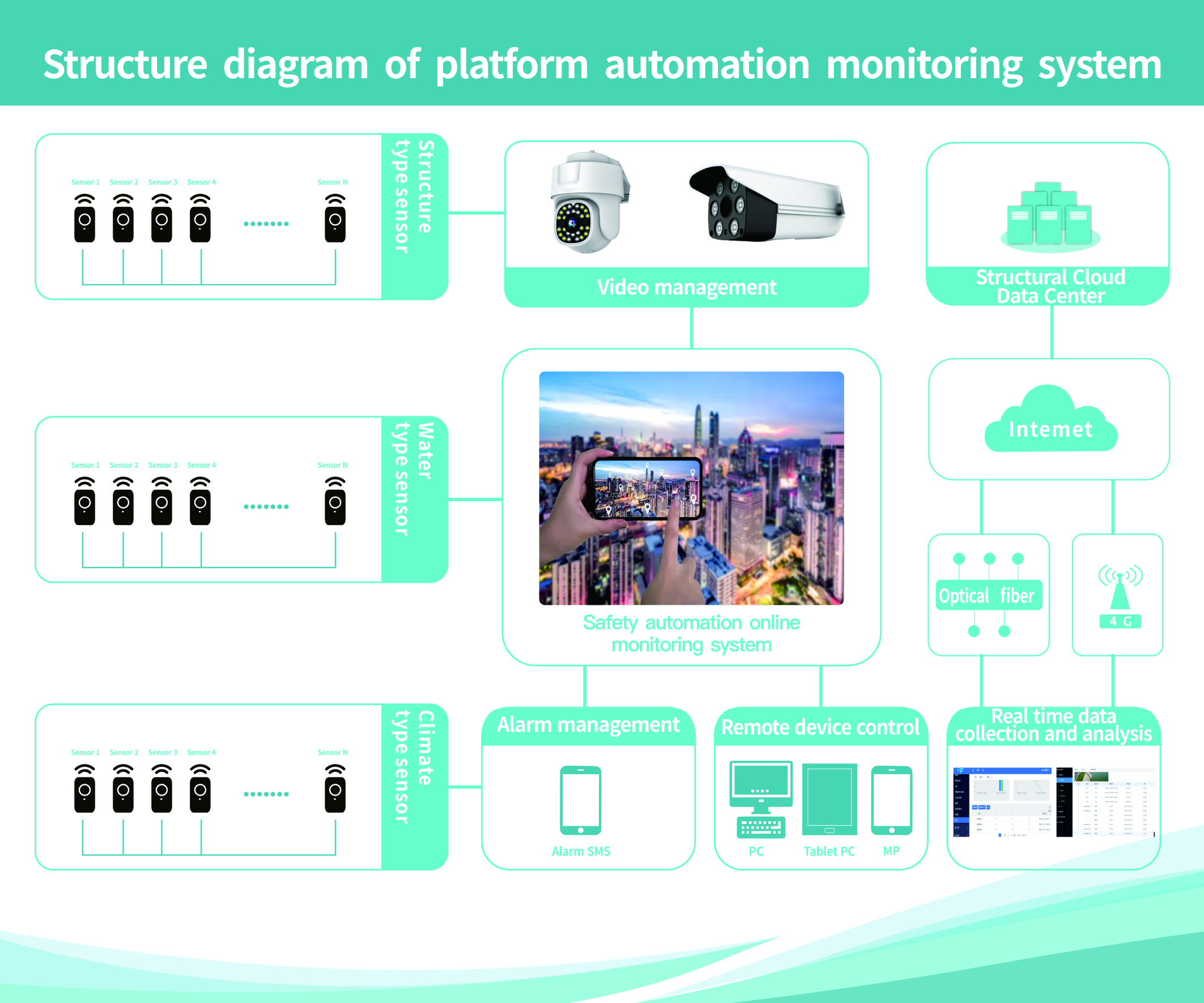

3、System topology diagram

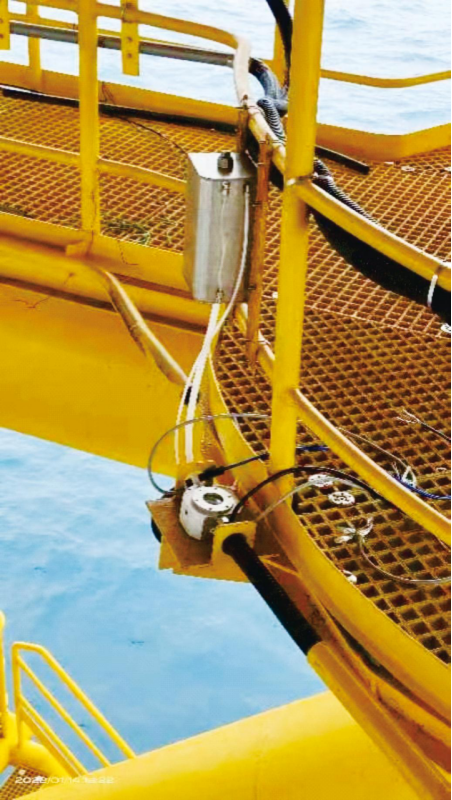

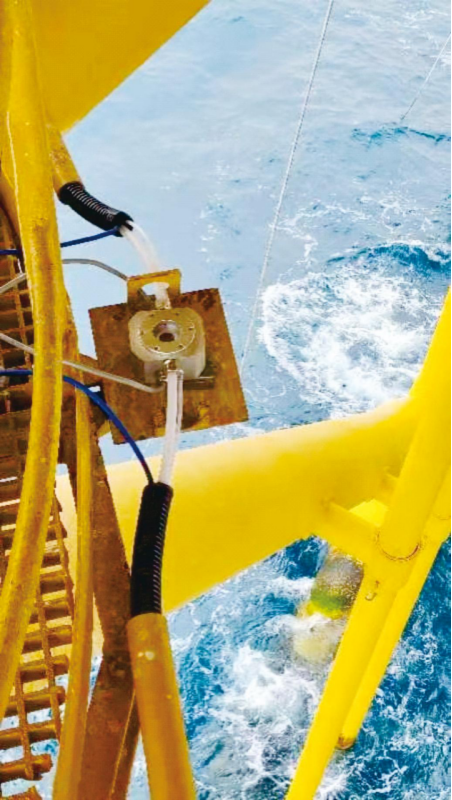

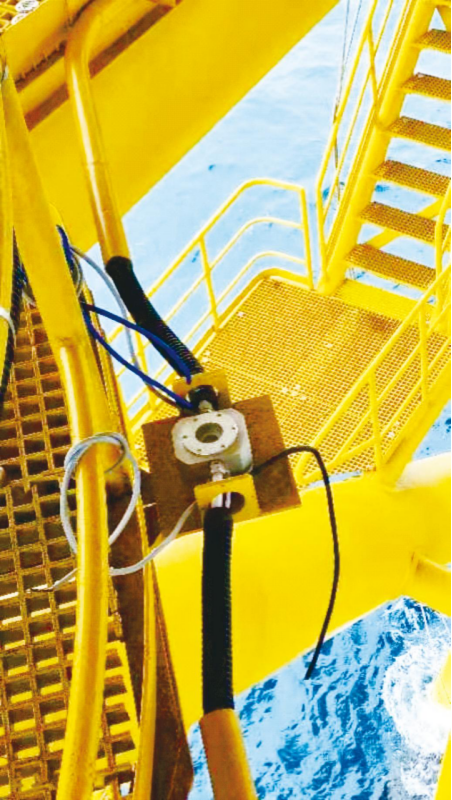

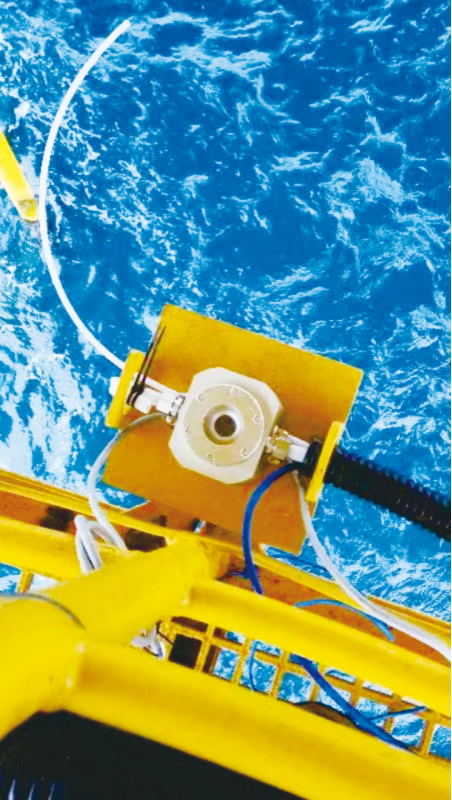

4、Application case diagram
