Roadbed safety monitoring system

1、System Introduction

The automatic monitoring of roadbed is mainly distributed in high fill roadbed sections, bridge tunnel connections, and bridge culvert connections, which belong to the filling area. In order to ensure the construction quality of railway subgrade and the uneven settlement that may occur during the operation period, which may affect the operation of high-speed rail, the design requires the addition of subgrade automation equipment in these weak areas to monitor the health status of the railway in real time

2、Monitoring content

(1) Surface displacement monitoring

(2) Internal displacement monitoring

(3)Settlement displacement monitoring

(4) Camera personnel identification

(5) Rainfall monitoring

(6)Soil pressure monitoring

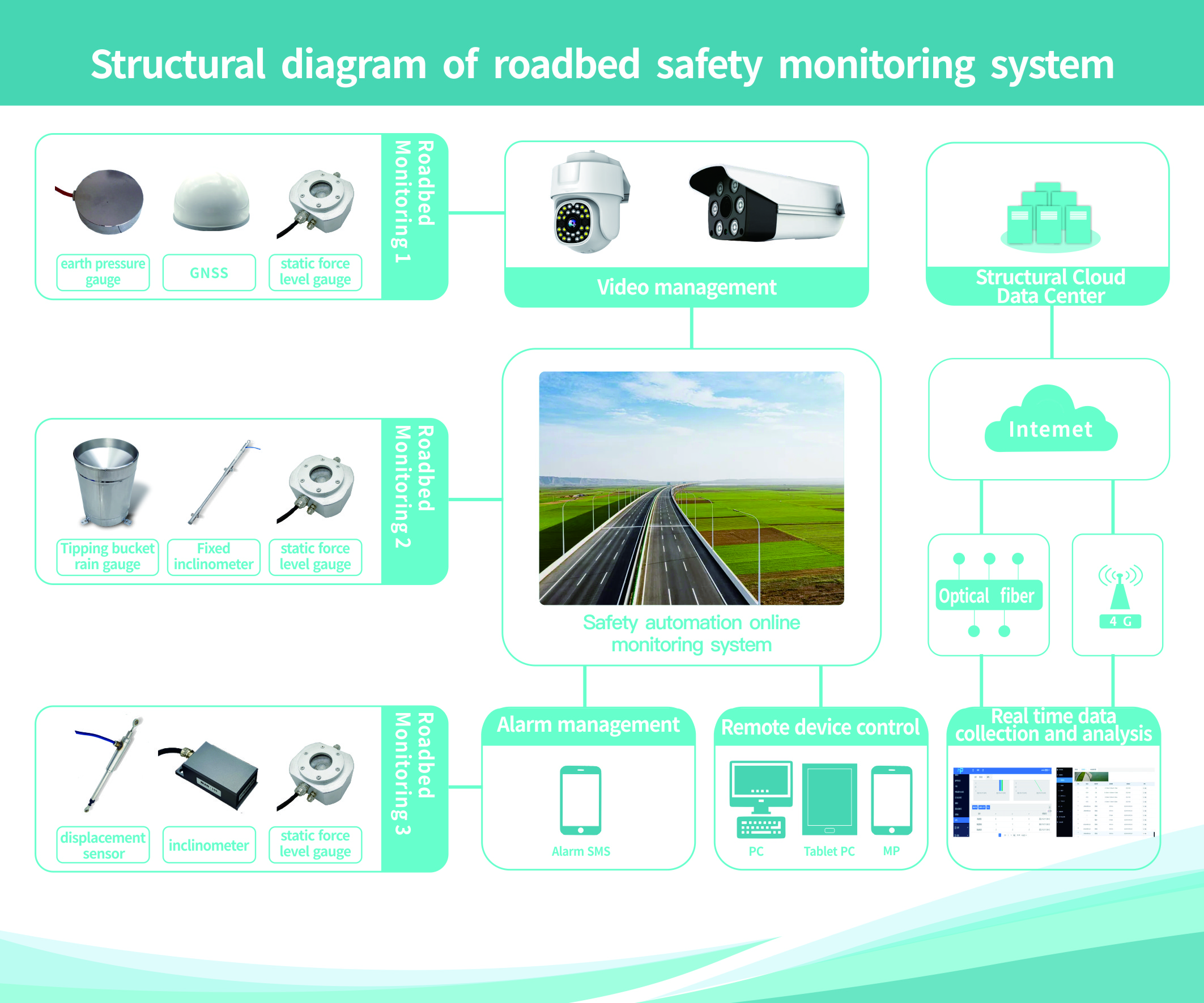

3、System topology diagram

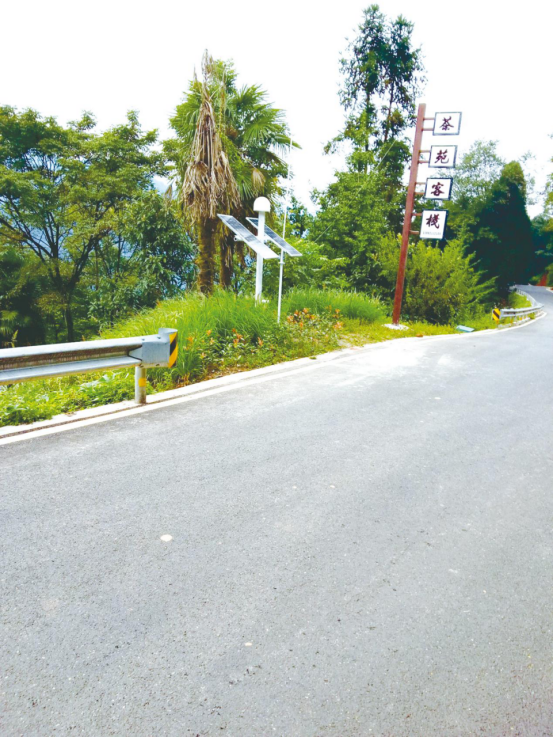

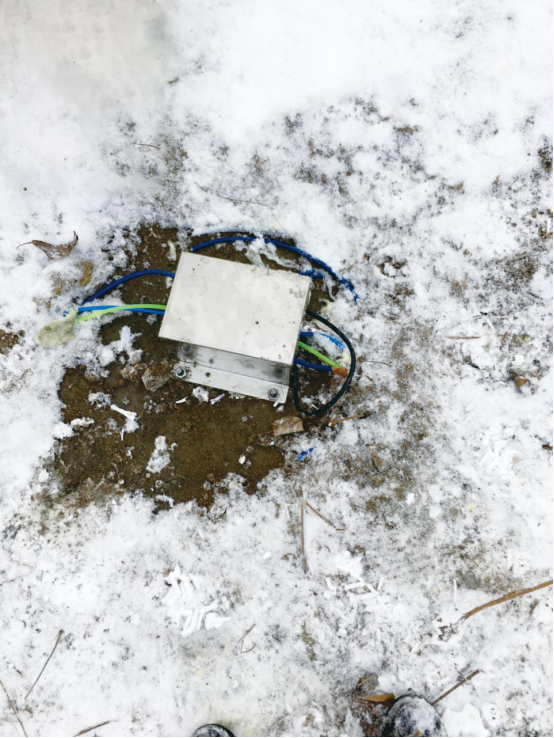

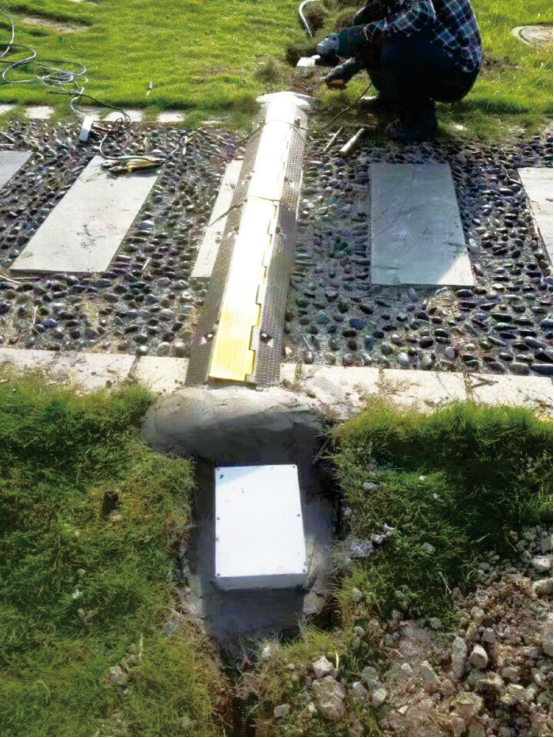

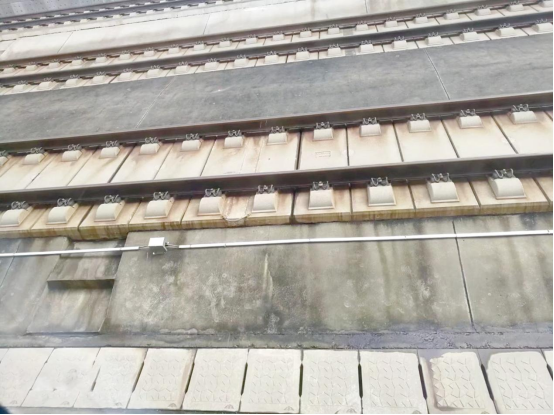

4、Application case diagram
