Building settlement monitoring system

1、System Introduction

The online monitoring system for building safety utilizes sensor technology, signal transmission technology, network technology, and software technology to monitor key technical indicators of building safety from a comprehensive perspective that combines macro and micro perspectives. It records historical and existing data, analyzes future trends, and facilitates decision-making by operating units.

The system relies on intelligent software systems to establish an analysis and security warning model, which is integrated with the short message platform. When an exception occurs, it automatically releases short messages to the mobile phones of monitoring and management personnel in a timely manner, and initiates corresponding contingency plans as soon as possible.

2、Monitoring content

(1) Settlement displacement monitoring

(2) Internal displacement monitoring

(3)Surface stress-strain monitoring

(4) Water level monitoring

(5)Tilt monitoring

(6) Rainfall monitoring

(7)Crack displacement monitoring

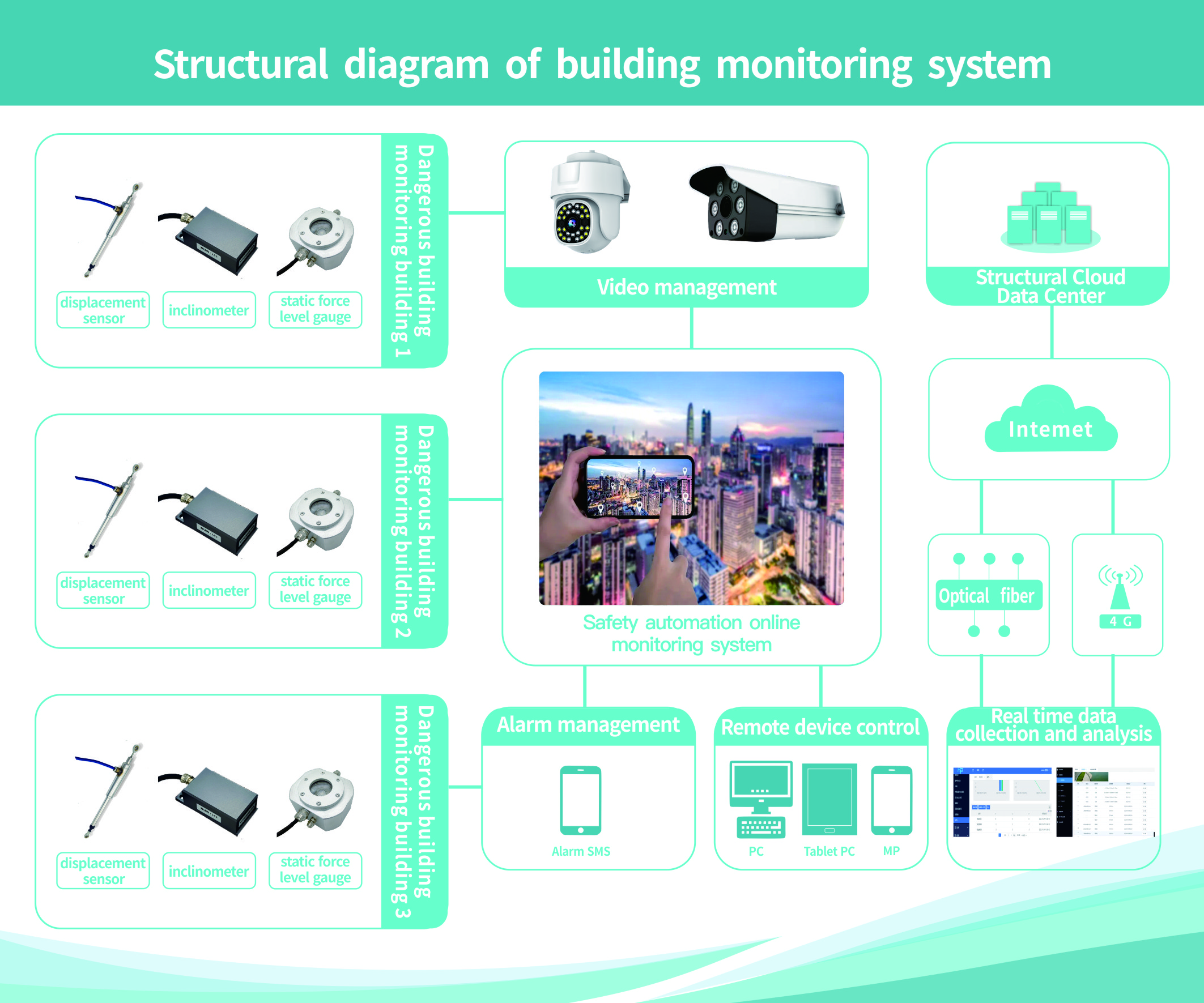

3、System topology diagram

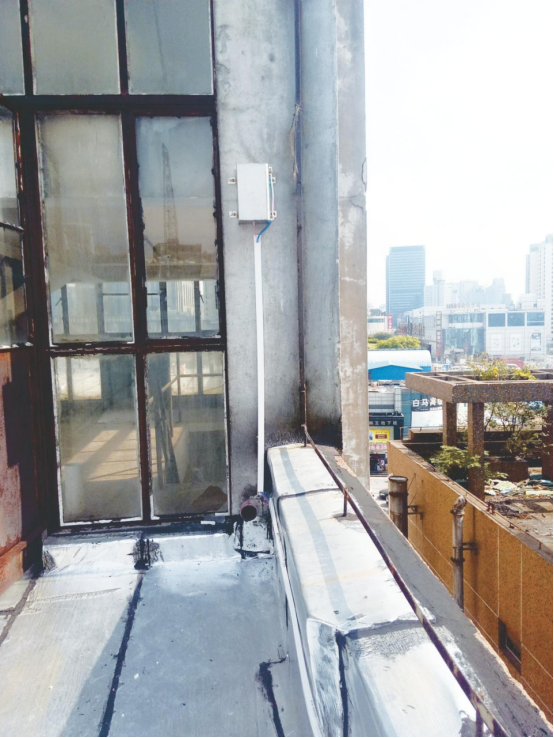

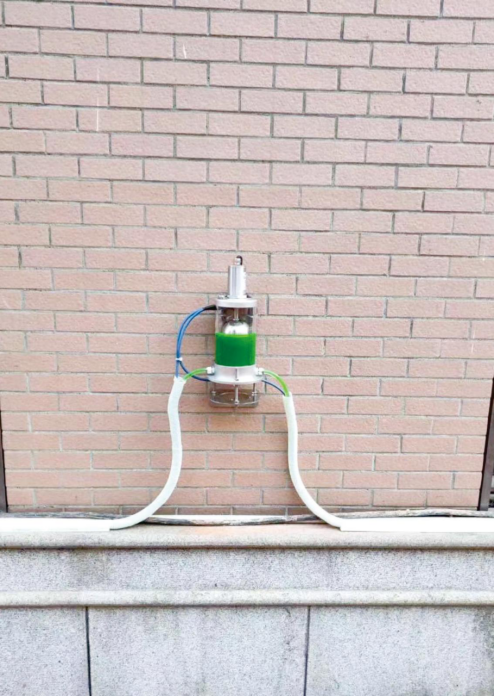

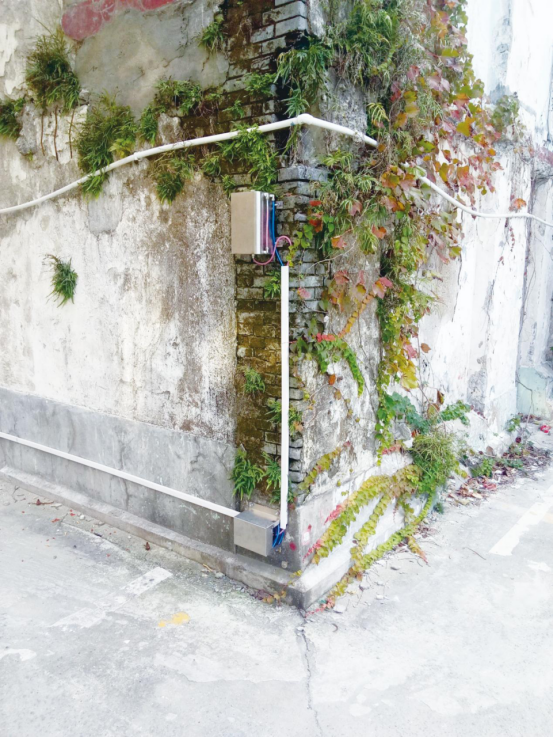

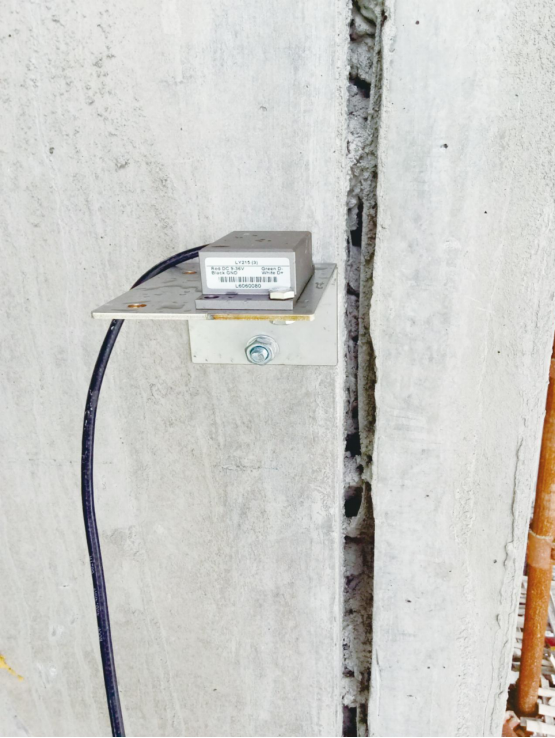

4、Application case diagram
