Online monitoring of tower fan safety

1、System Introduction

In order to eliminate safety hazards of iron towers and avoid incidents such as tilting and collapsing that endanger driving safety, advanced technology and equipment need to be used for real-time safety monitoring of iron towers, providing basic reference data for centralized rectification, medium repair, and major repair of iron towers.

The iron tower safety monitoring system adopts mature signal acquisition, control, network communication and other technologies, combined with first-class sensing technology and intelligent video analysis technology, to monitor the operation and health status of the iron tower, as well as various natural disasters and man-made damages that endanger the safety of the iron tower in real time, and to issue timely warnings and alerts.

2、Monitoring content

(1) Settlement displacement monitoring

(2) Surface strain monitoring

(3)Tilt monitoring

(4)Crack displacement monitoring

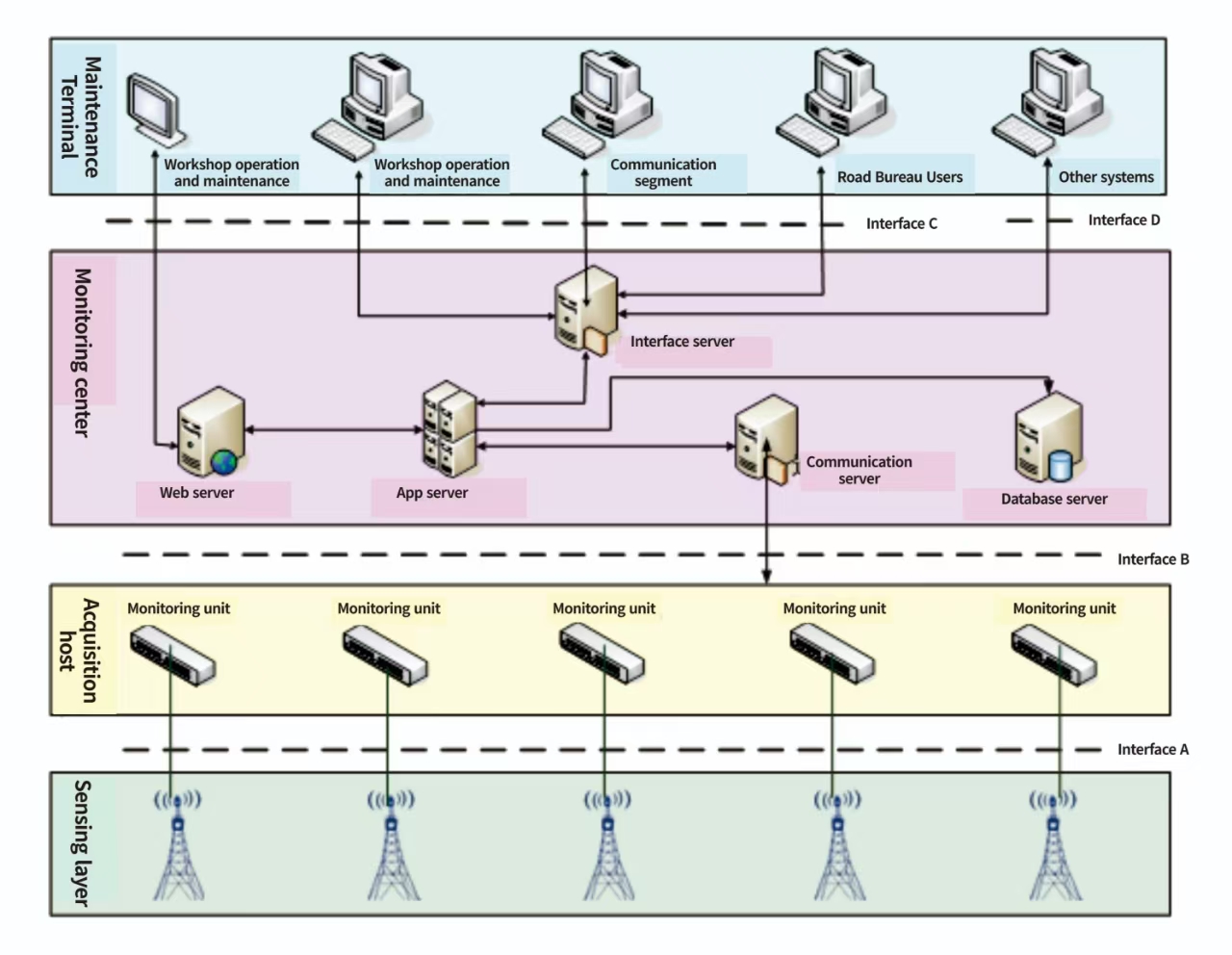

3、System topology diagram

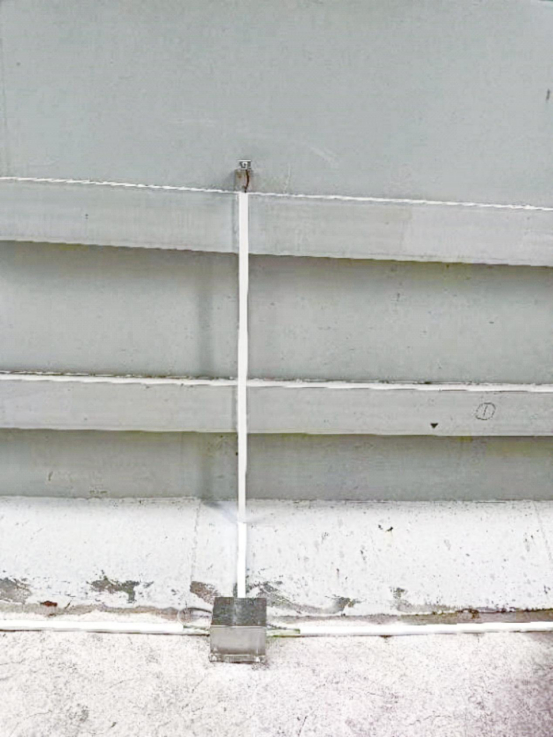

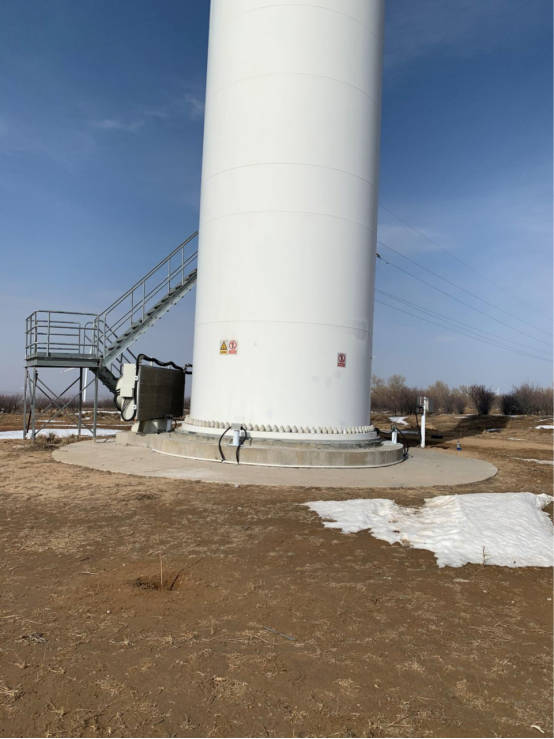

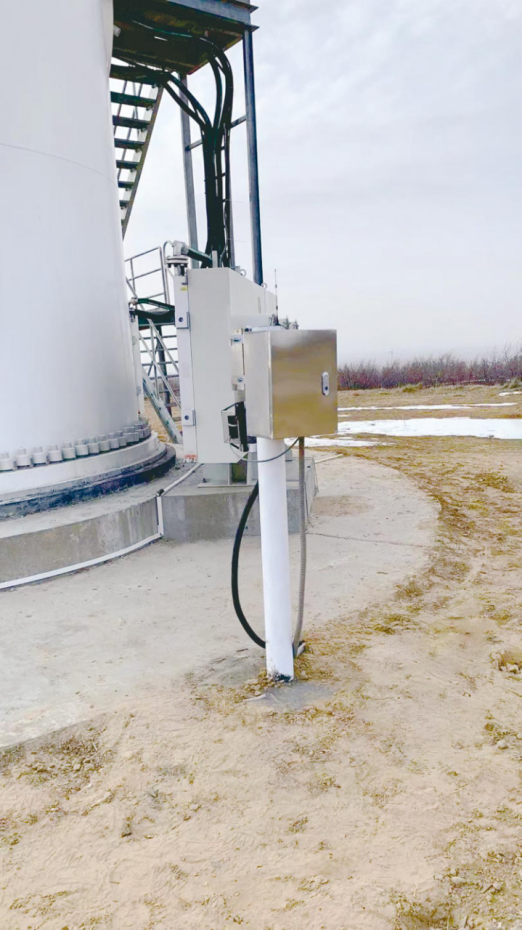

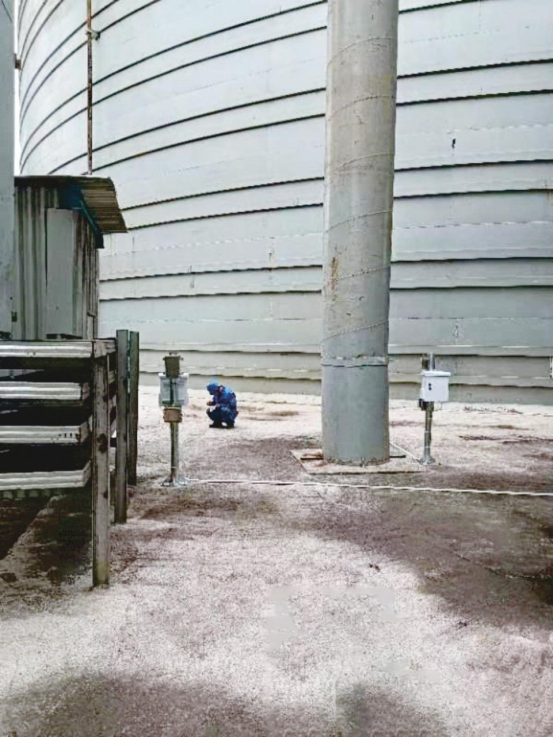

4、Application case diagram
