Online monitoring of tailings pond safety

1、System Introduction

The online monitoring system for tailings ponds utilizes sensor technology, signal transmission technology, network technology, and software technology to monitor various key technical indicators that affect the safety of tailings ponds and dam bodies from a comprehensive perspective that combines macro and micro perspectives; Record historical and existing data, analyze future trends, in order to assist enterprises and governments in making decisions, improve the safety and security level of tailings ponds, and effectively prevent and contain major accidents.

The system relies on an intelligent software system to establish an analysis and warning model, which is integrated with the short message platform. When an abnormality occurs, it automatically sends a short message to the mining management personnel in a timely manner, and initiates the corresponding contingency plan as soon as possible.

2、Monitoring content

(1) Surface displacement monitoring

(2) Internal displacement monitoring

(3) Camera personnel identification

(4) Monitoring of dry beaches

(5) Reservoir water level monitoring

(6) Rainfall monitoring

(7) Infiltration line monitoring

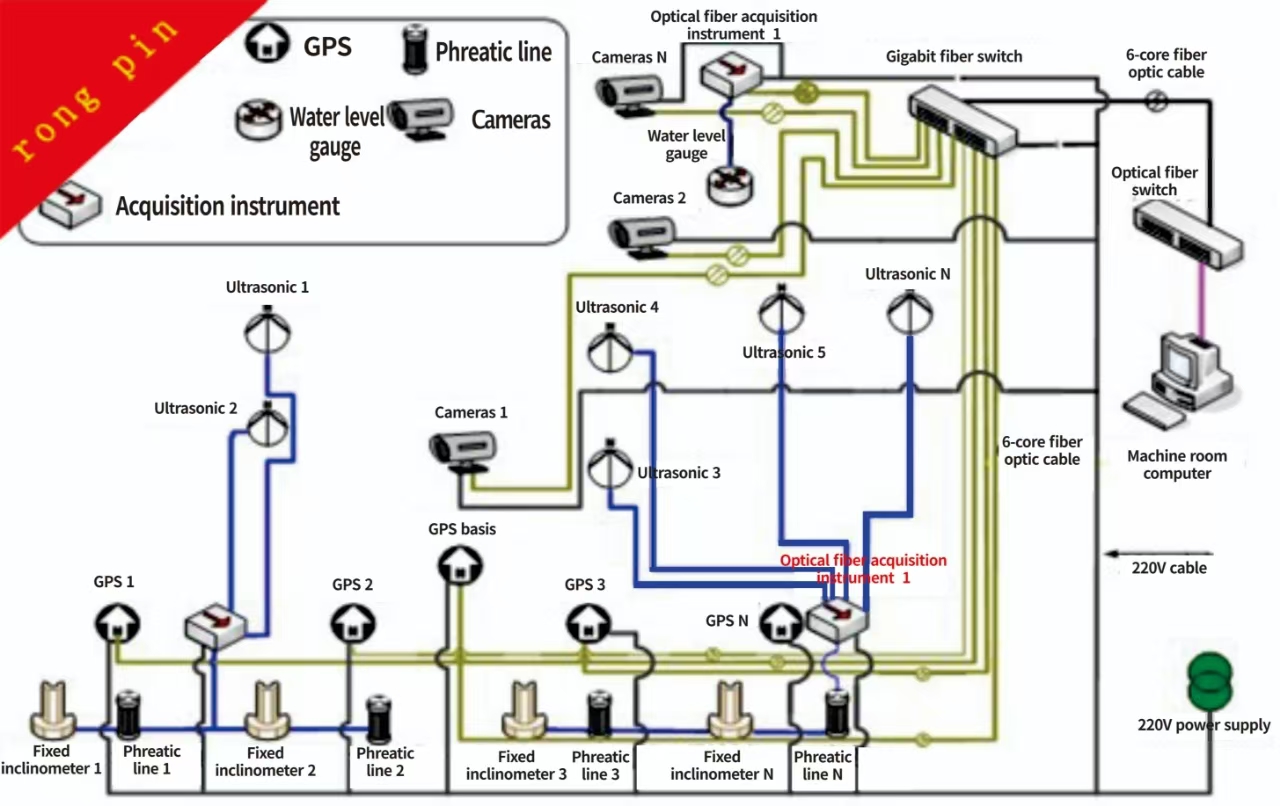

3、System topology diagram

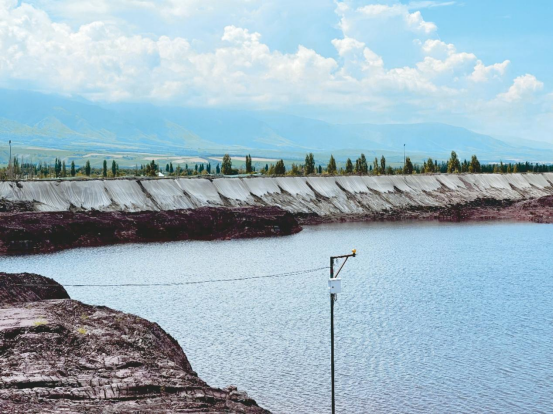

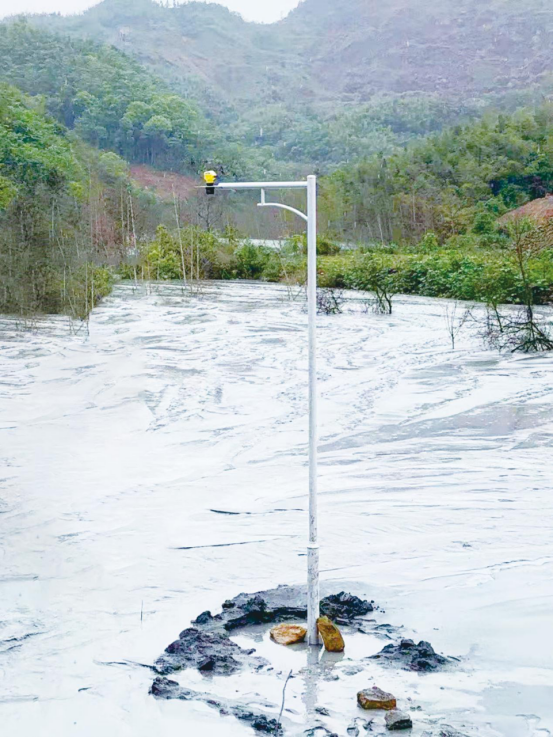

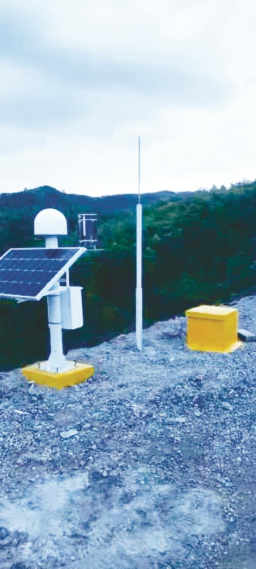

4、Application case diagram
