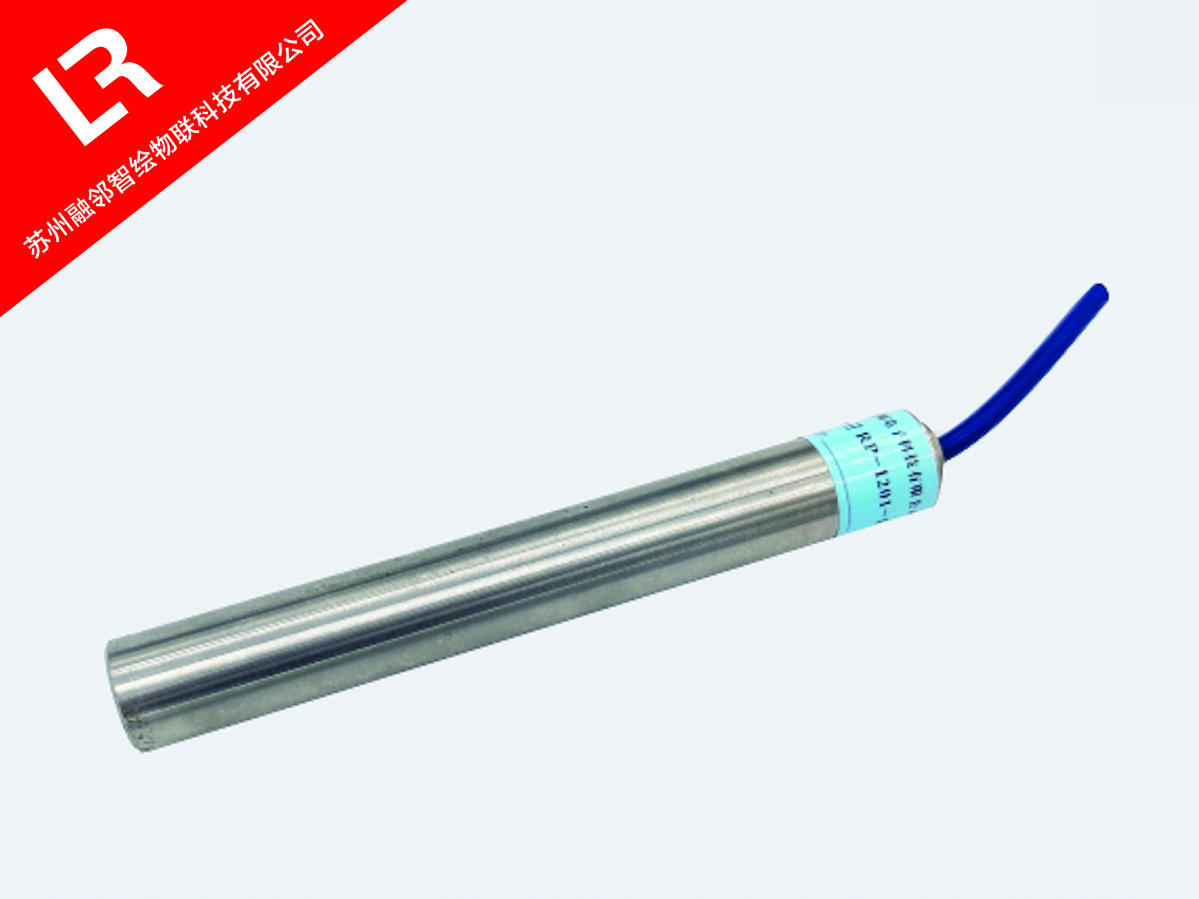

RL-1201-1 water level gauge
Product Introduction
Suitable for long-term burial in hydraulic structures or other concrete structures and soil, measuring the permeability (pore) water pressure inside the structure or soil, and synchronously measuring the temperature at the burial point. The water level gauge with accompanying accessories can be used in pressure measuring pipelines and foundation drilling. The water level gauge is made of all stainless steel structure, with flexible volume.
Product parameters
Range | 0.1MPa-4MPa |
Resolution | 0.0001MPa-0.001MPa |
temperature range | -20℃-80℃ |
External dimensions | Diameter 42mm, length 160mm (customized by the user) |
