Product Introduction

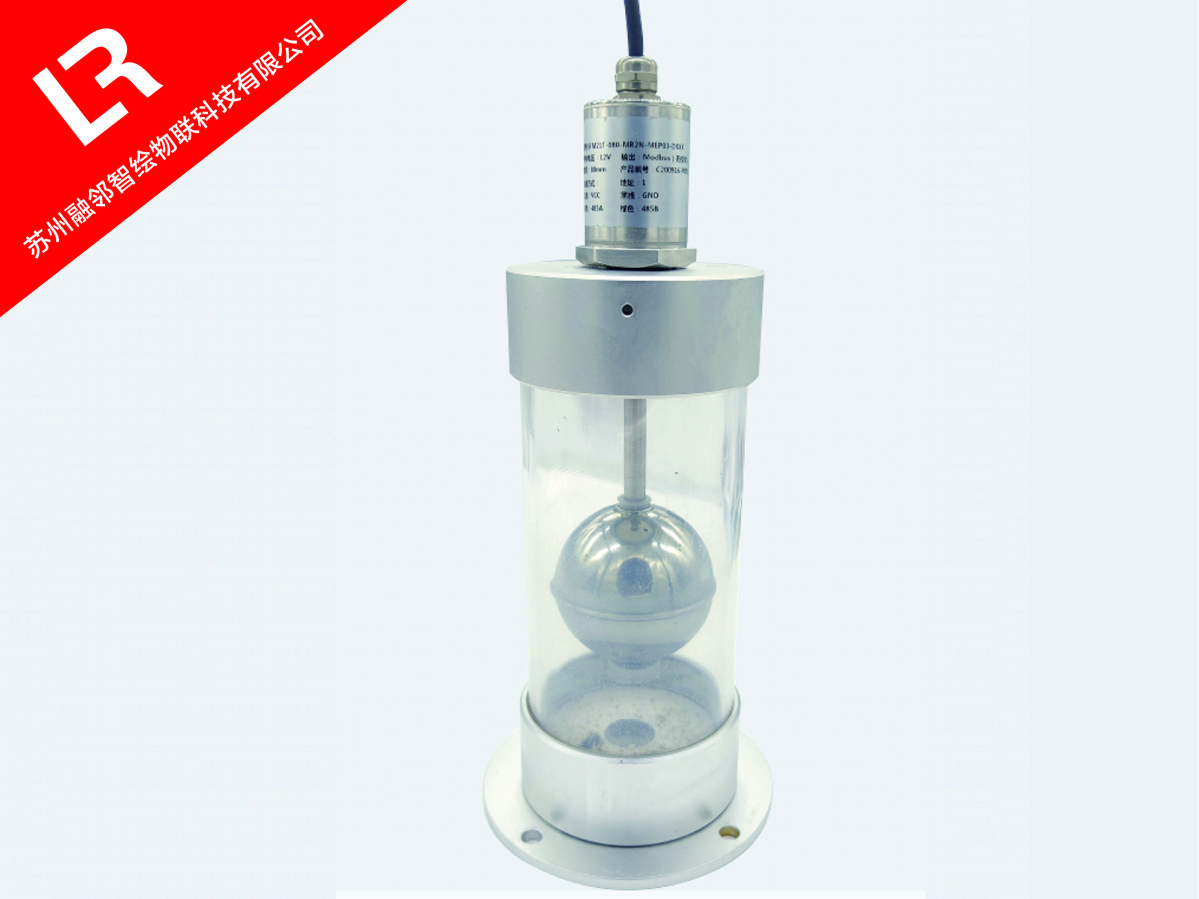

This liquid level sensor is a new type of high-precision liquid level sensor developed using the principle of magnetostriction. It is a non-contact liquid level sensor, which can have many characteristics such as long service life, good stability, high precision, and good repeatability. The sensor is made of all stainless steel, does not rust, has a fully enclosed external structure, and has good waterproof performance.
Product parameters
Range | 0-50、0-100、0-200MM |
Accuracy | ±0.01 |
Resolution | 0.01mm |
systematic error | ±0.5 |
temperature range | -40℃~＋80℃ |
Product size | 340﹡130mm |
Communication speed | 9600～115200 |
Shell material | stainless steel |
Collect remote management | Support remote parameter configuration |
Communication parameters | RS485/232 |
transmission distance | Point to point adjustable within 2km, GPRS not limited by distance |
