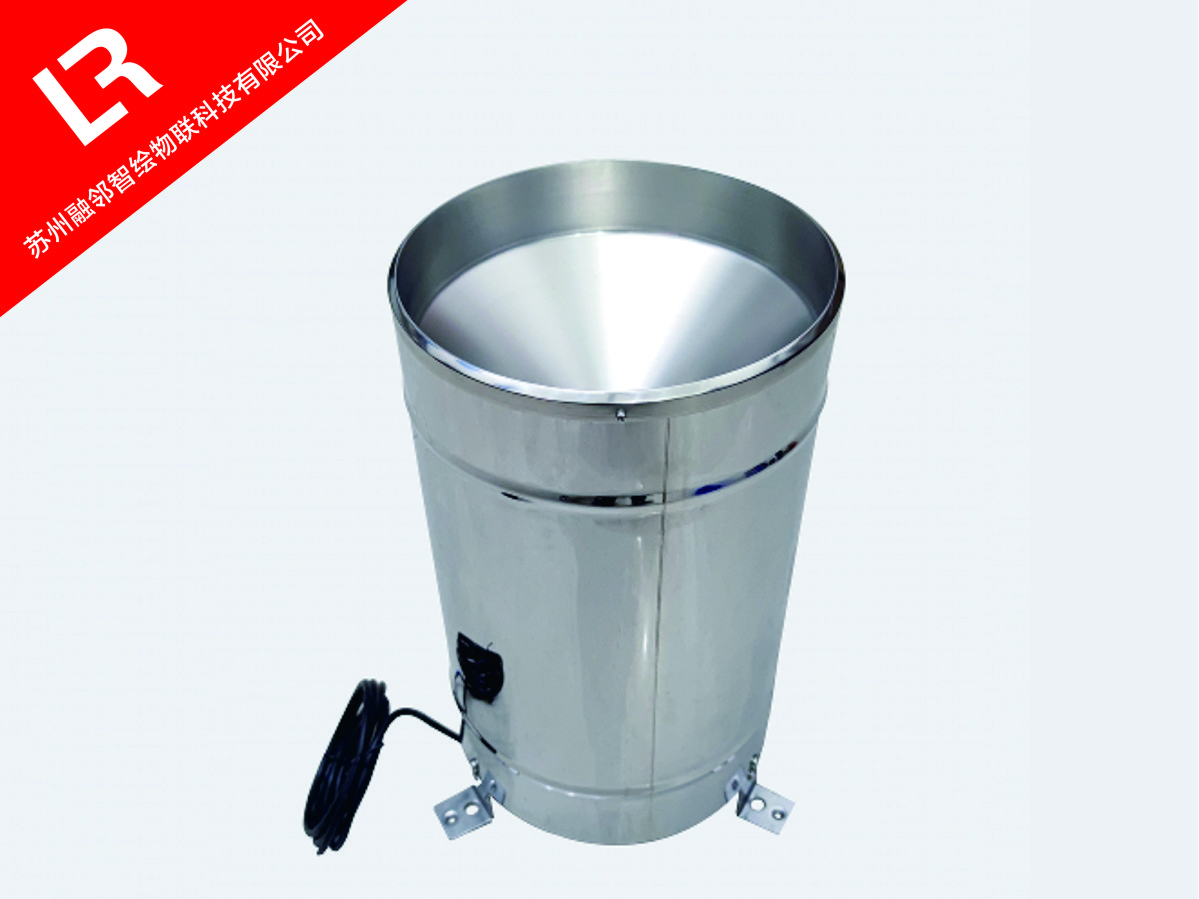

Product Introduction
The tipping bucket rain sensor is suitable for meteorological stations, hydrological stations, geological disasters, flash floods, and agricultural departments. It is used for liquid precipitation and precipitation intensity, and outputs RS485 signals.
The sensor consists of a water receiver, an upper tipping bucket, a measuring tipping bucket, a counting tipping bucket, etc.
Product parameters
Rain bearing caliber | φ200mm |
Sharp edge Angle | 40°~45° |
Discernibility | 0.2mm/0.5mm optional |
Power dissipation | 0.24W |
ambient temperature | 0～50℃ |
relative humidity | <95%(40℃) |
Power supply range | 4.5~30V |
work environment | |
Measurement accuracy | ≤± 2% (indoor artificial precipitation, based on the instrument's own drainage volume) |
Rain intensity range | 0mm~4mm/min (allowing rainfall intensity of 8mm/min) |
Communication method | 485 communication (standard MODBUS-RTU protocol) |
