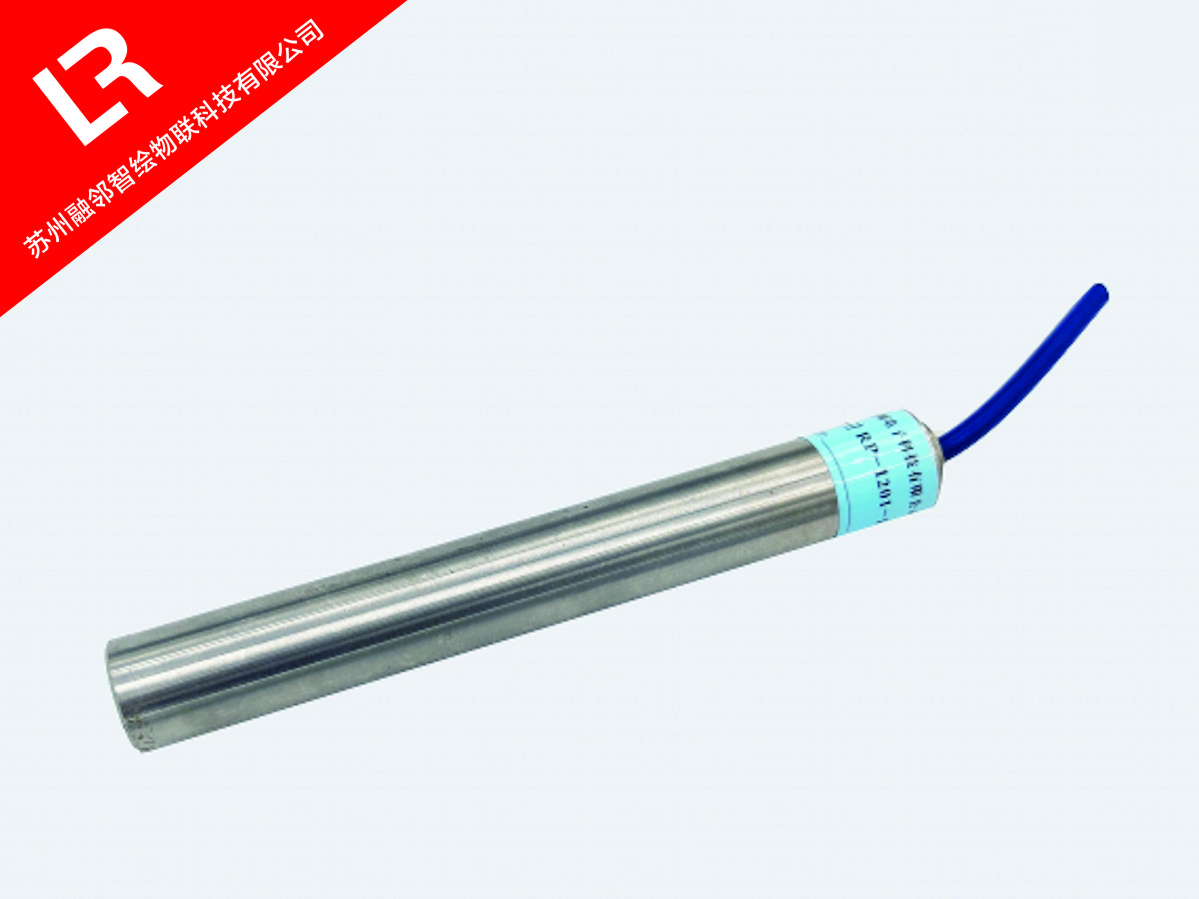

RL-1201 osmolometer
Product Introduction
Suitable for long-term burial in hydraulic structures or other concrete structures and soil, measuring the permeability (pore) water pressure inside the structure or soil, and synchronously measuring the temperature at the burial point. The installation of matching accessories for the osmometer can be used in pressure measuring pipelines and foundation drilling. The osmometer is made of all stainless steel structure and has a flexible volume of 24x120mm.
Product parameters
Range | 0.1MPa-4MPa |
Resolution | 0.0001MPa-0.001MPa |
temperature range | -20℃-80℃ |
External dimensions | Diameter 42mm, length 160mm (customized by the user) |
