Product Introduction

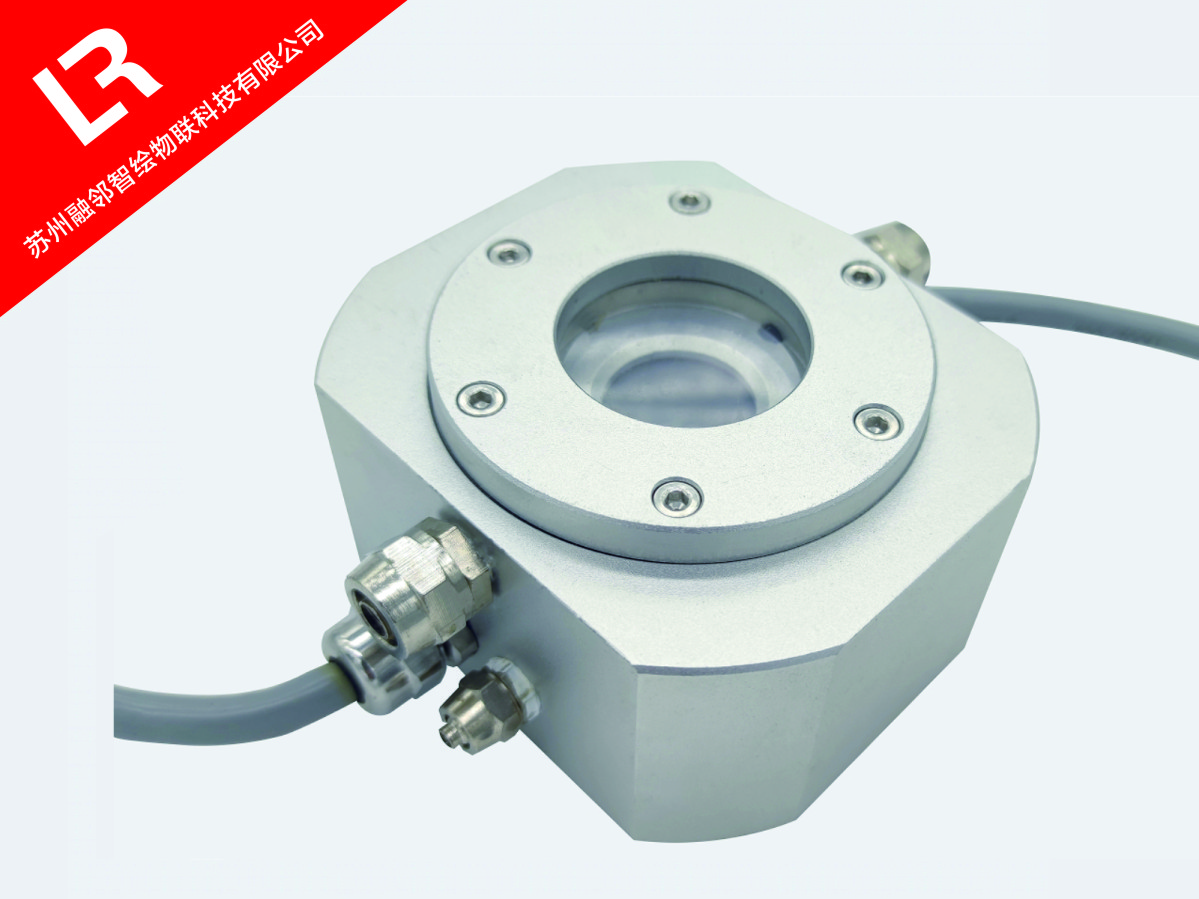

The crystalline silicon static level mainly consists of reference points, monitoring points, connecting pipes, and polymer liquids. The reference point serves as a fixed reference point, and the measuring point is connected to the reference point through a liquid communication pipe. The measuring point is filled with a polymer liquid inside, which is sensed by a pressure sensor to detect changes in liquid pressure. The settlement change of the measuring point is calculated by taking a height difference from the reference point.
Product parameters
Range:0-2000MM
Accuracy:±0.1MM
systematic error:±0.5MM
Communication speed：9600~115200
Resolution：0.01MM
Communication parameters：RS485/232
Wireless extension type：ZigBee/433/Bridge/GPRS/BD/Microwave (expandable)
Power supply mode:12-36v
Environmental temperature range:-40℃~+80℃
storage capacity :4MByts
Protection level:IP67
Size：110*105*50MM
Shell material：Magnesium aluminum alloy (can be customized according to requirements)
Collect remote management：Support remote parameter configuration (also supports platform configuration and SMS configuration)
