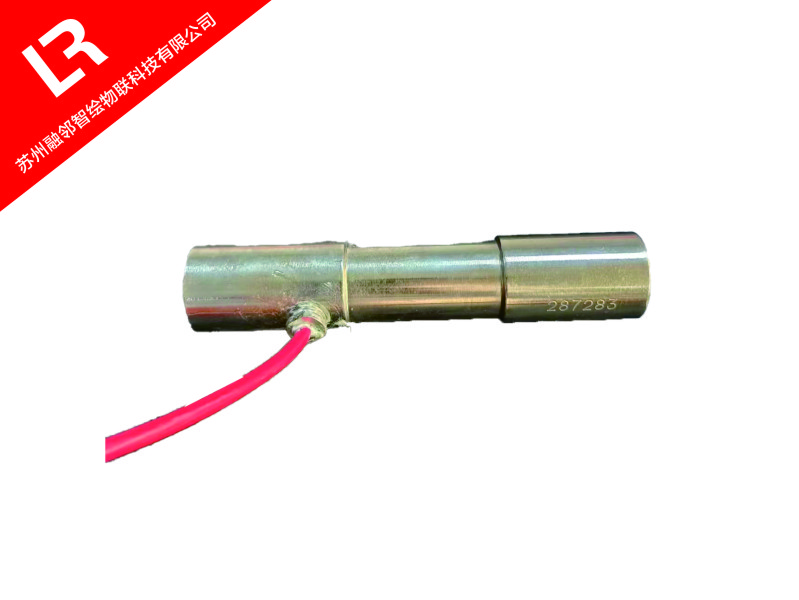

Instrument specifications:Φ28
Instrument model:RL-100
Instrument number:287293
room temperature:15
measuring range :PULL:0~120KN
Press:0~60KN
Insulation resistance :≥50MΩ
Coil resistance:604Ω
Factory frequency value:1558
Measuring line length:1M
Waterproof pressure:0.5MPa
Working environment temperature:-25℃~+60℃
Calibration coefficient:K:Instrument sensitivity coefficient(KN/Hz²)
PULL:6.92×10-5 ,Press:7.07×10-5
Calculation formula:P=K（fi²-fo²）
When the calculation result is positive, the instrument is in a tensile state.When the calculation result is negative, the instrument is under pressure.
P:Load of the tested object（KN）
fo:Initial frequency value(Hz)
fi:Real time measurement of frequency values(Hz)
Remarks:Has passed ISO9001 quality system certification.
